Power Track Socket
Power Track Socket Manufacturer — Custom Rail Lengths, OEM/ODM
Moonian is a premier China-based manufacturer specializing in high-performance modular rail systems for global brands, architects, and commercial contractors.
✓ Custom Engineering: Tailored rail lengths (40cm–4m) & modular configurations.
✓ Global Compatibility: Interchangeable EU/UK/US/AU/Universal plug modules.
✓ Certified Quality: Full CE & RoHS certification for elite safety standards.
✓ Direct Advantage: Competitive factory pricing from our Guangdong facility.

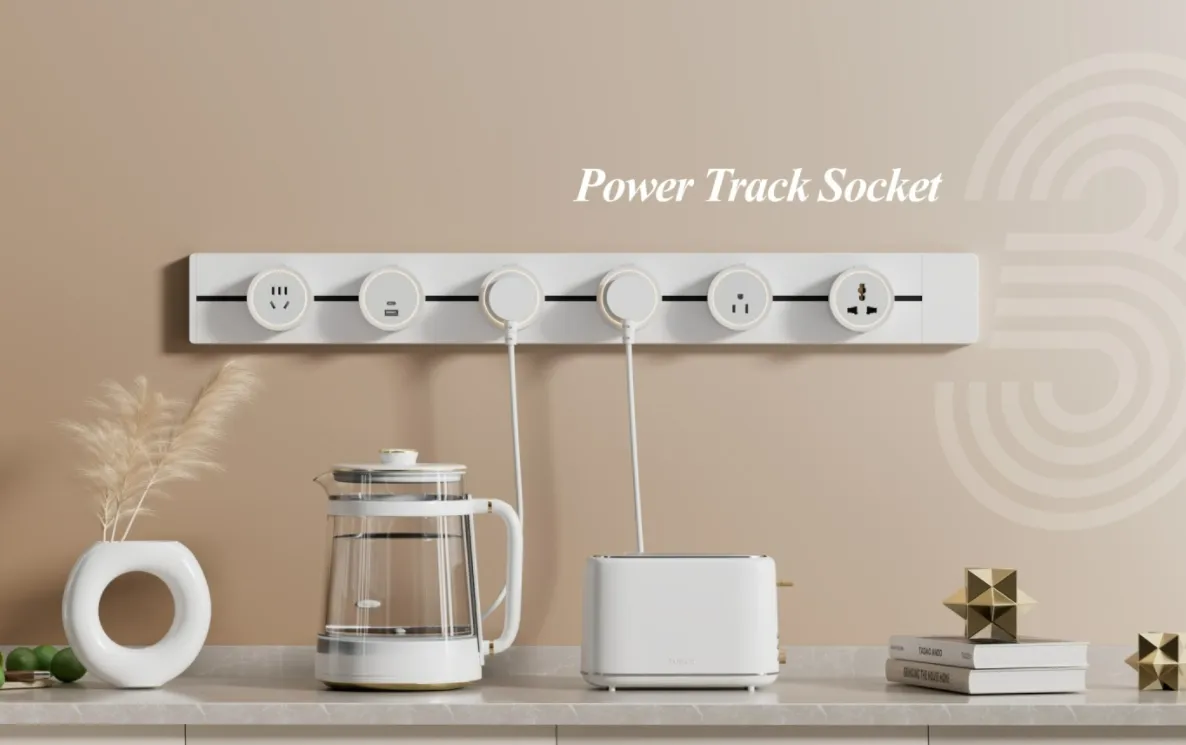

Power Track Socket for Kitchen, Office & Commercial Spaces

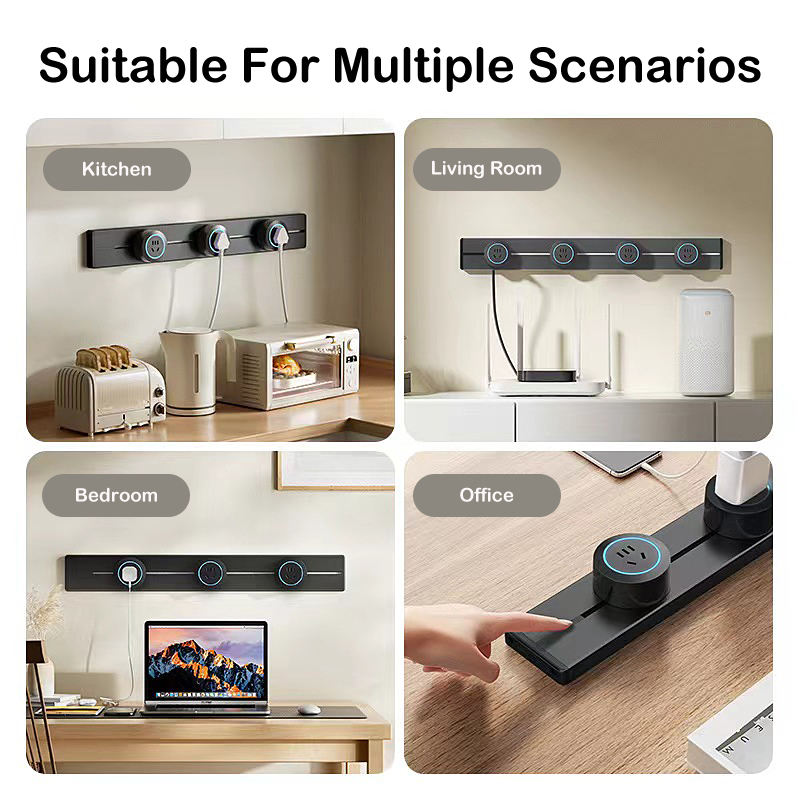

This power track socket solution enables effortless installation via junction box wiring or adhesive mounting, conceals cables, and adapts flexibly to kitchens, living rooms, offices, and hotels. Streamline device management while ensuring premium protection and clean aesthetics in any modern setting with our versatile power track socket system. Engineered for Elite Environments：
✓ Minimalist Offices & Executive Suites
✓ Luxury Hotel Renovations & VIP Lounges
✓ Bespoke Kitchen Islands ✦ Conference Tech Walls
✓ High-Demand Studios & Smart Home Control Centers
Ideal for exhibition booths, retail counters, kitchen islands, office partitions, and hotel rooms — anywhere flexible, repositionable power access is needed.
Space-Liberating Innovation
✦ Vanishing Power Access: Outlets retract automaticallyafter device removal, creating 41% larger usable surfaces (vs. tangled traditional sockets)
✦ Self-Sealing Protection: Interlocking tracks + rotating modulesshield unused ports from dust/liquid ingress (IP20 defense)
✦ Zero-Obstruction Profile: Flush-mounted S1 (concealed) or adhesive-backed S2 models eliminate desktop/worksurface clutter
Engineered for Elite Environments

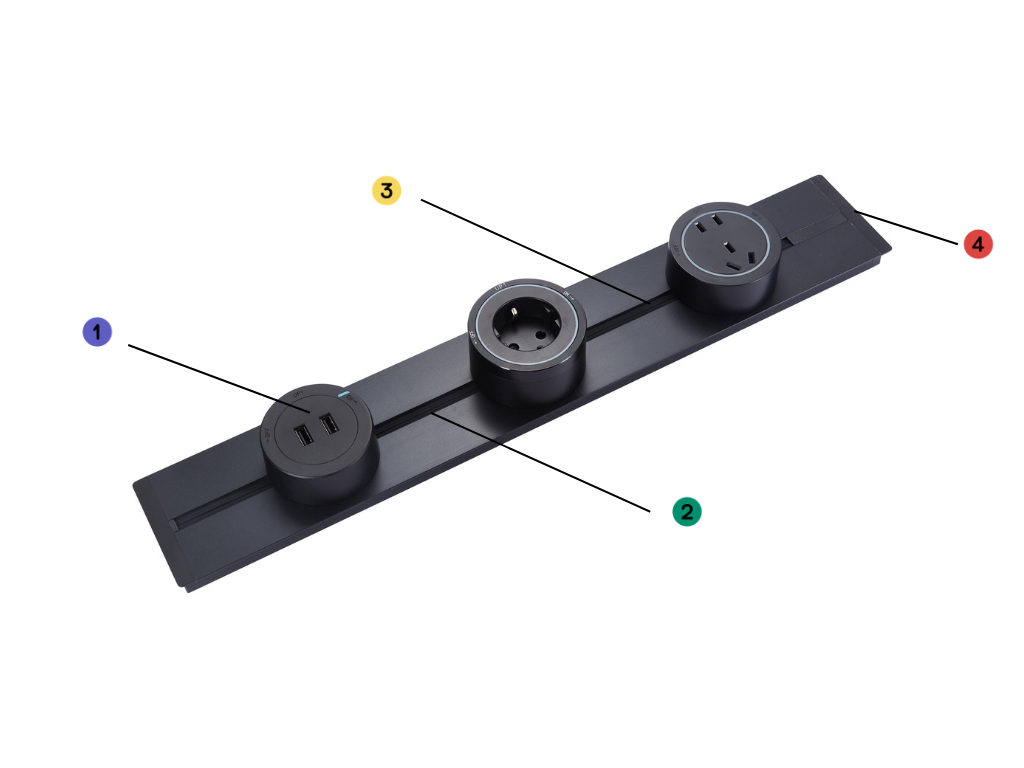

Precision-crafted for ultimate safety & lasting performance, this power track socket delivers engineered excellence in every component:
1. Adapter: ABS，Brass
2. Body: Aluminum Alloy
3. Guide rail: Brass; Rubber strip: Nanomaterial
4. Cover: ABS
Select the Ideal Electric Track Solution for Your Project

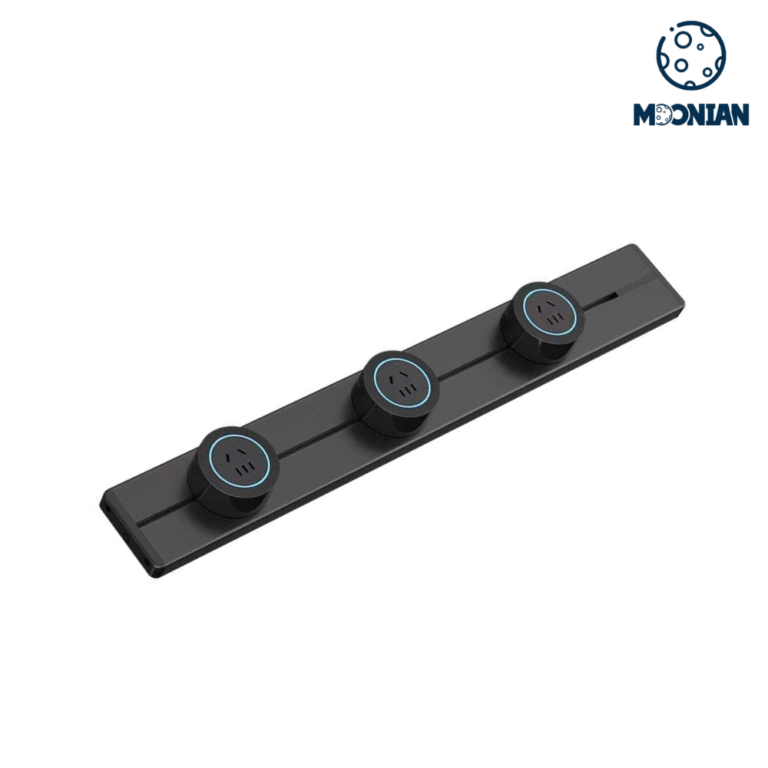

Our power track socket range is designed for versatility, featuring movable adapters that slide freely along the rail—a sophisticated, flexible alternative to traditional fixed power strips.
As a leading manufacturer, Moonian engineers modular solutions to your exact specifications. Whether you are outfitting a high-end kitchen, a modern office, or a commercial showroom, we provide the precision you need.
Choose Your Installation Method:

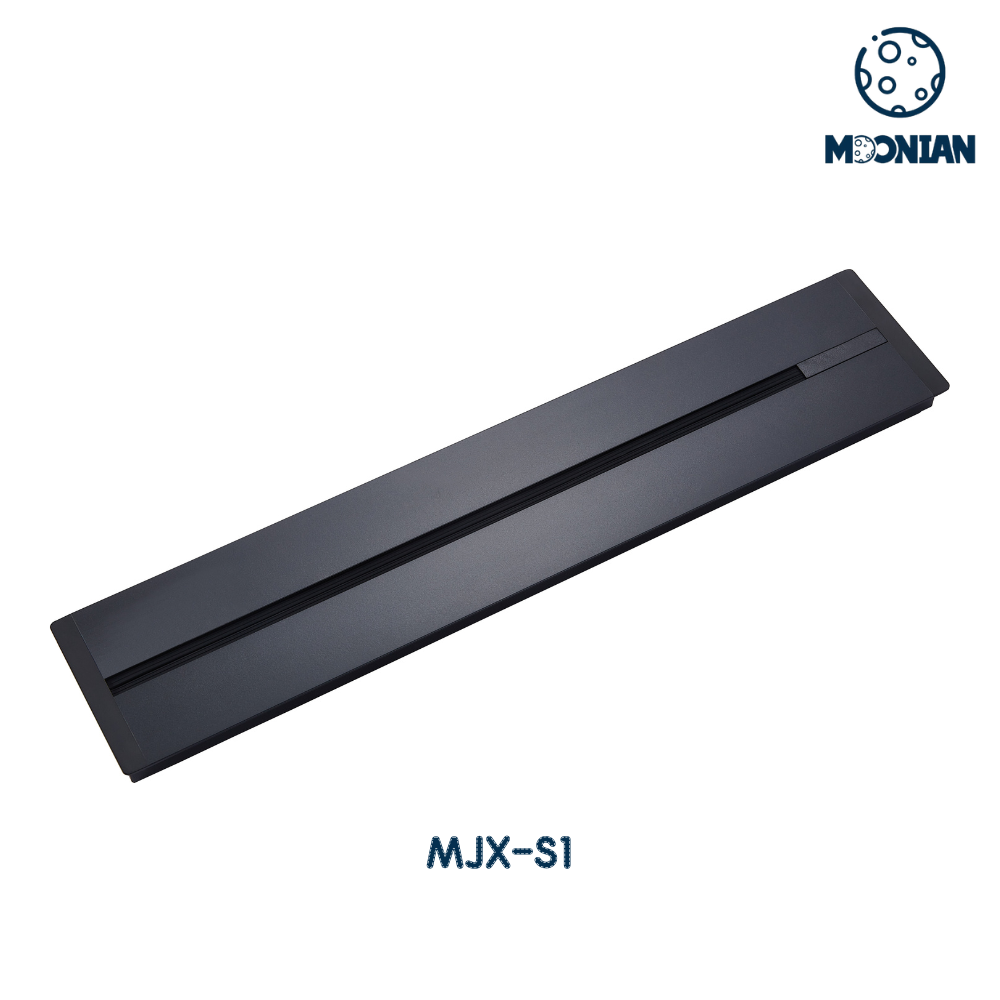

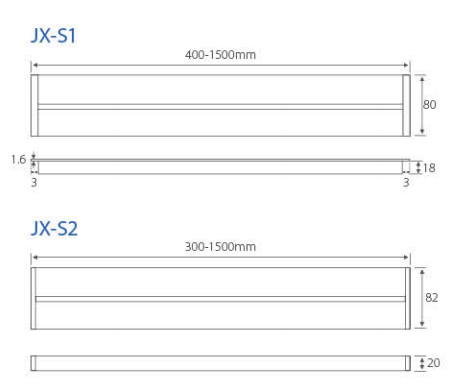

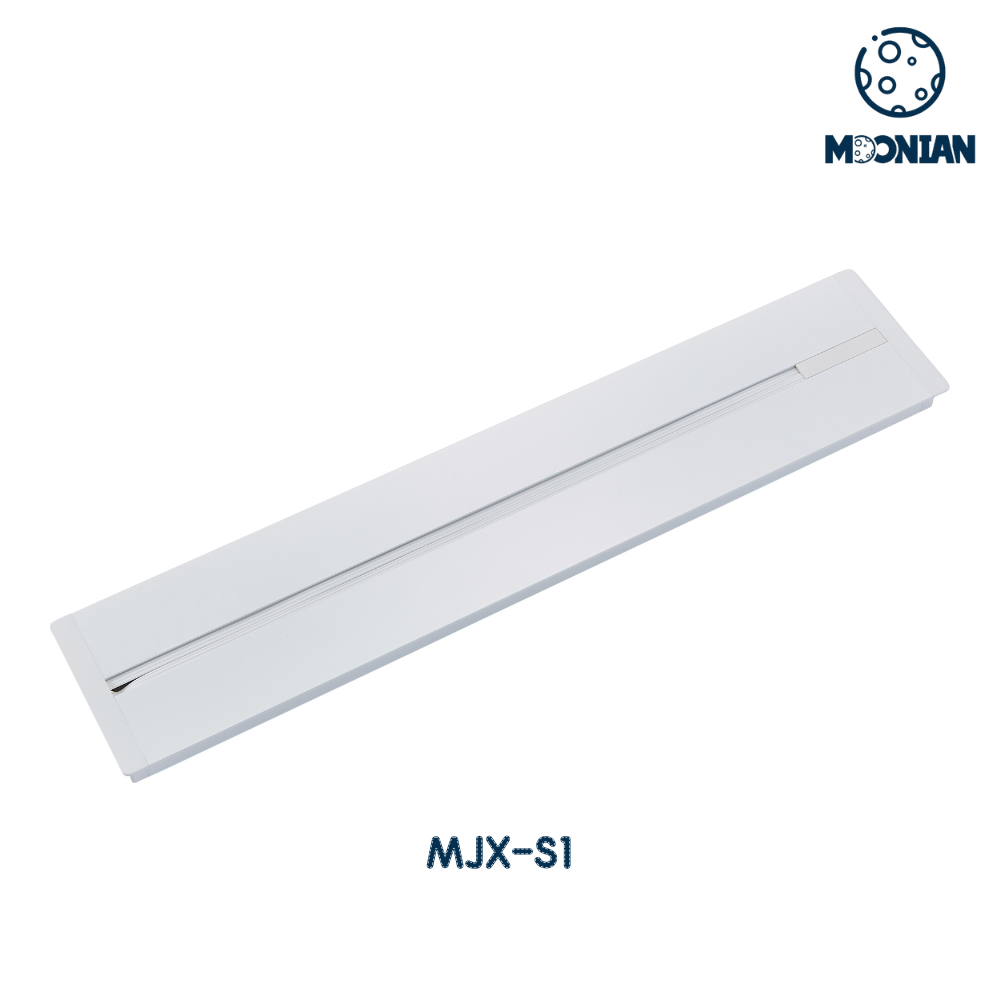

MJX-S1 Recessed Power Track (Concealed): Designed for a seamless, minimalist look. This model requires wall chasing (grooving) for flush installation, making it the perfect choice for pre-renovation projects.

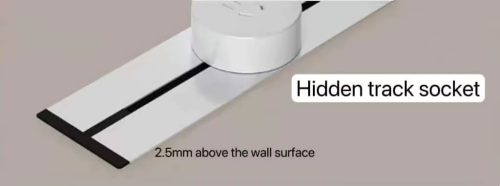

Profile: Only 2.5mm sits above the wall surface after installation.
Customization: Standard lengths from 40cm to 120cm (custom lengths available).
Cutout Specs: Width 7.1cm, Depth 2.1cm.

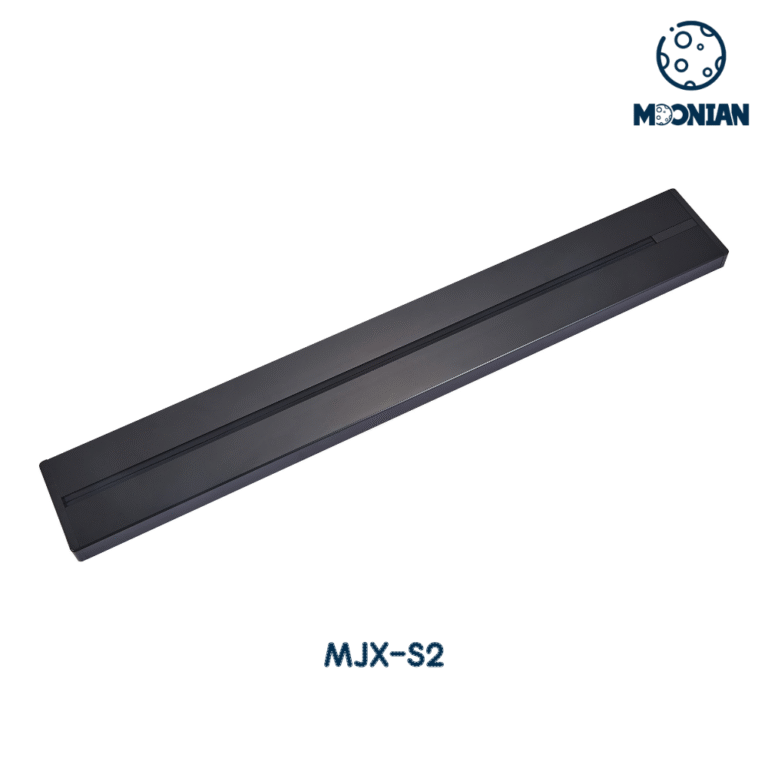

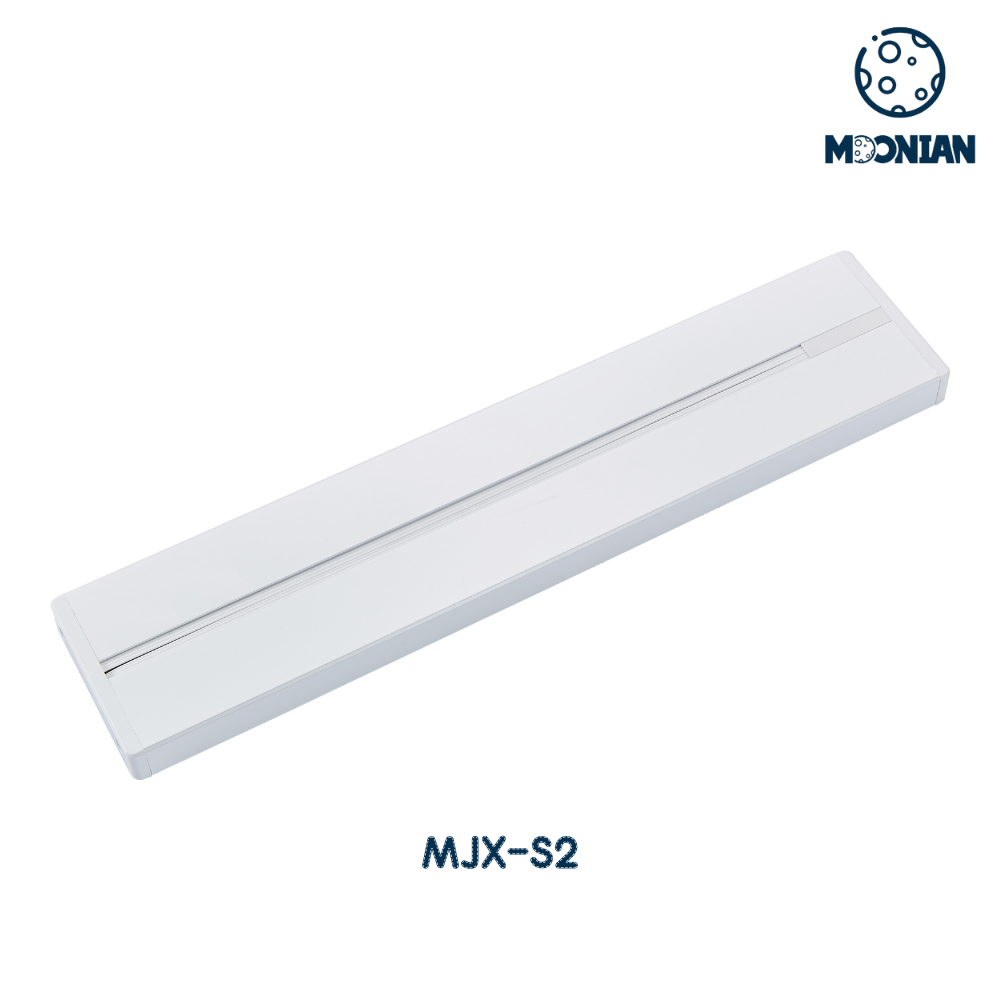

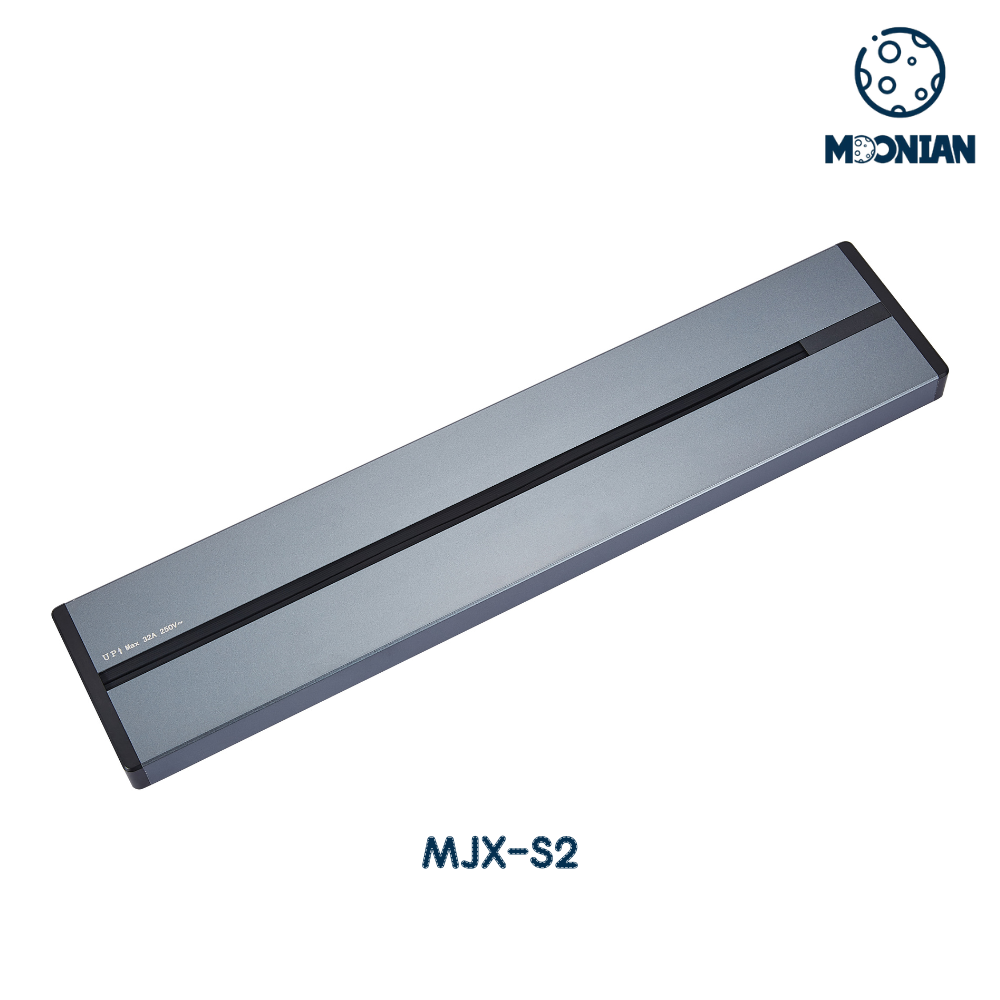

MJX-S2 Surface-Mounted Power Track (Slot-Free): The ultimate DIY-friendly upgrade. This model requires no grooving and can be installed anytime—during new construction or as a post-renovation enhancement.

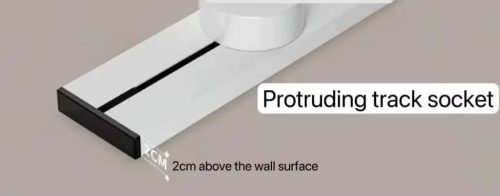

Profile: Sits 2cm above the wall surface, creating a bold, industrial aesthetic.
Versatility: Available in lengths from 30cm to 120cm (customizable).
Easy Setup: Ideal for mounting on backsplashes, office desks, or conference tables without damaging the structure.

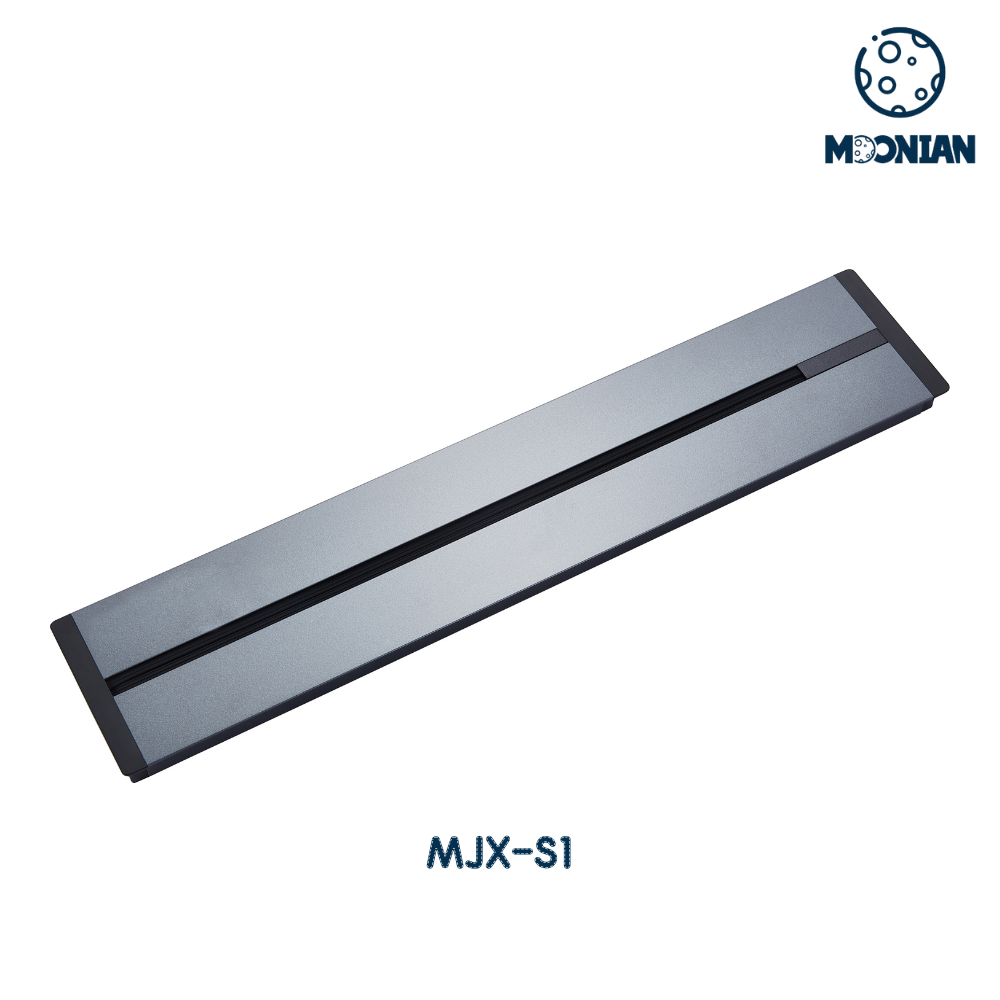

S1-Power Track

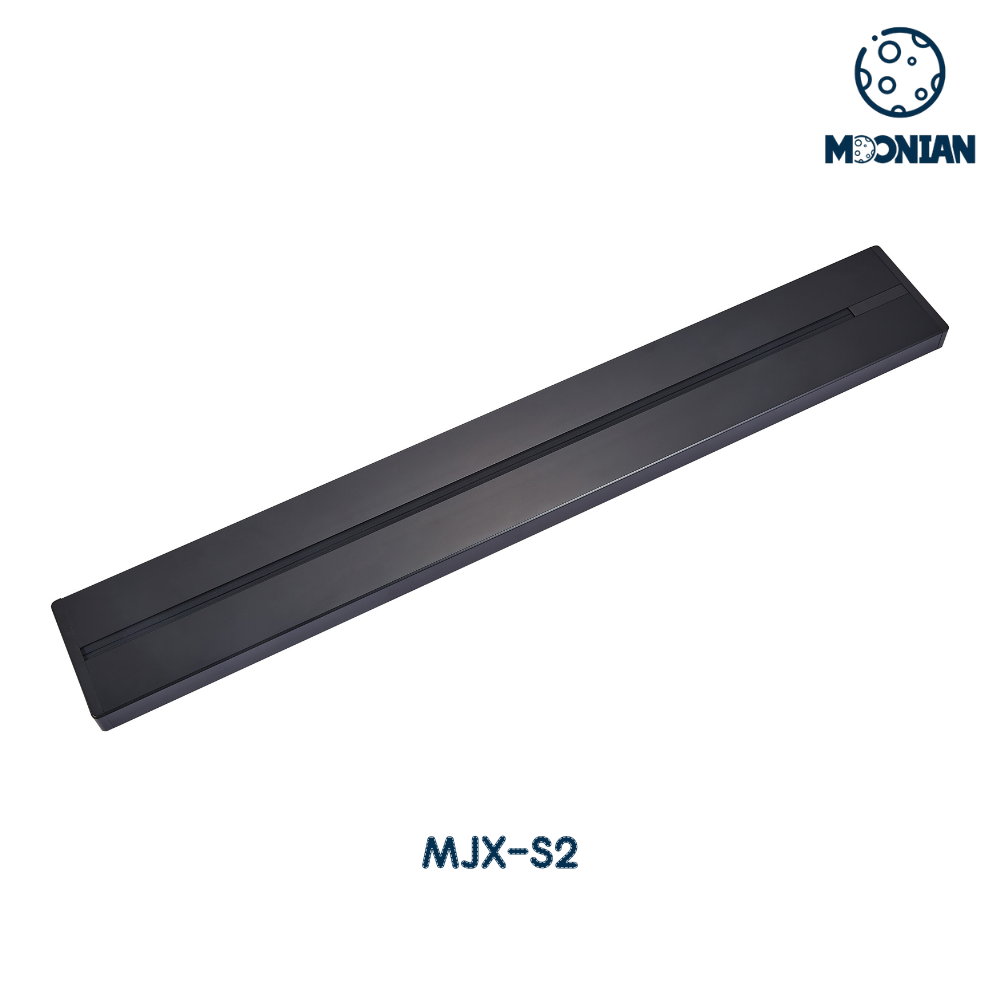

S2-Power Track

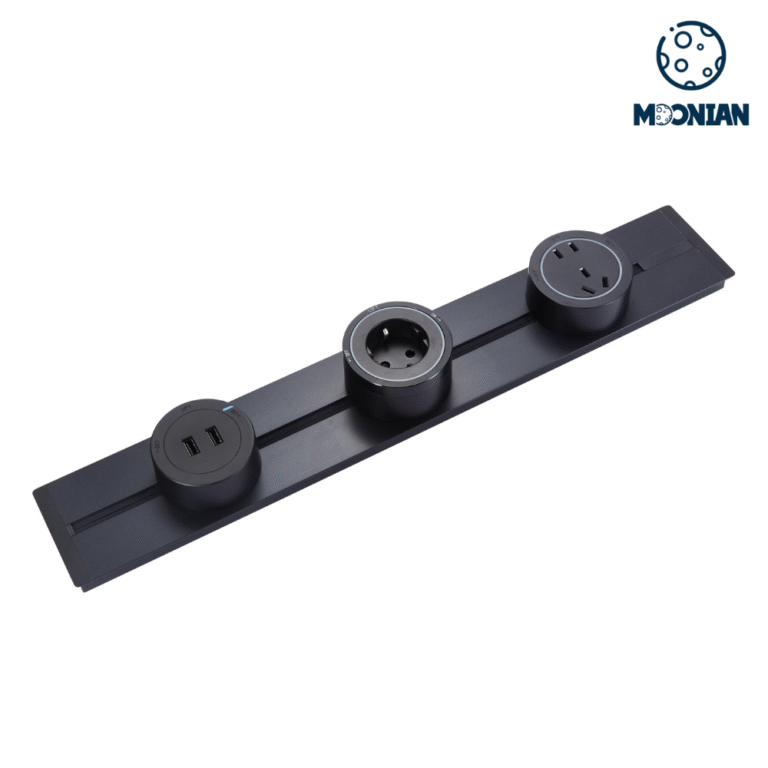

Customizable Power Track Socket Module - Endless Configurations
Choose Your Perfect Aesthetic & Functional Match:
Beyond the socket standard, we offer three distinct series of adapter designs to complement your interior:

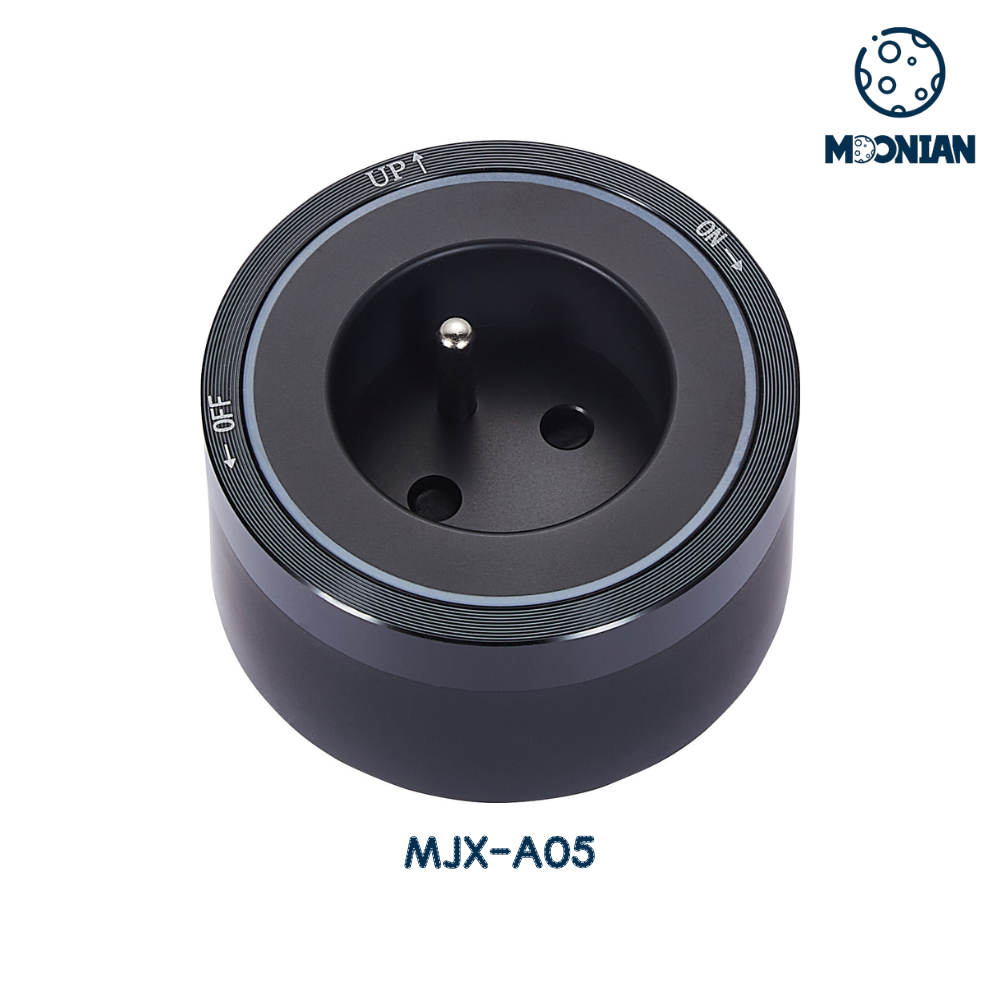

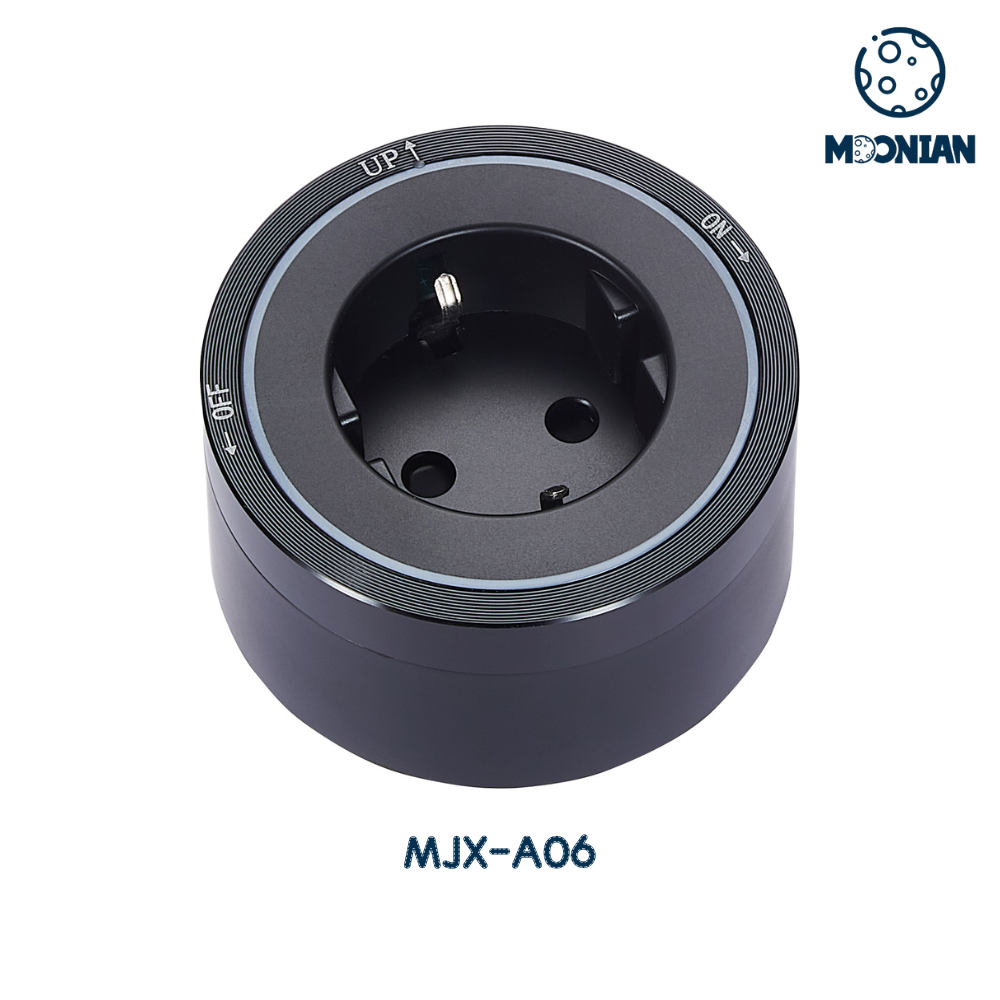

Halo-LED Series: Features our signature 360° glowing light ring. Ideal for high-tech kitchens and modern offices where a futuristic “status” indicator is desired.

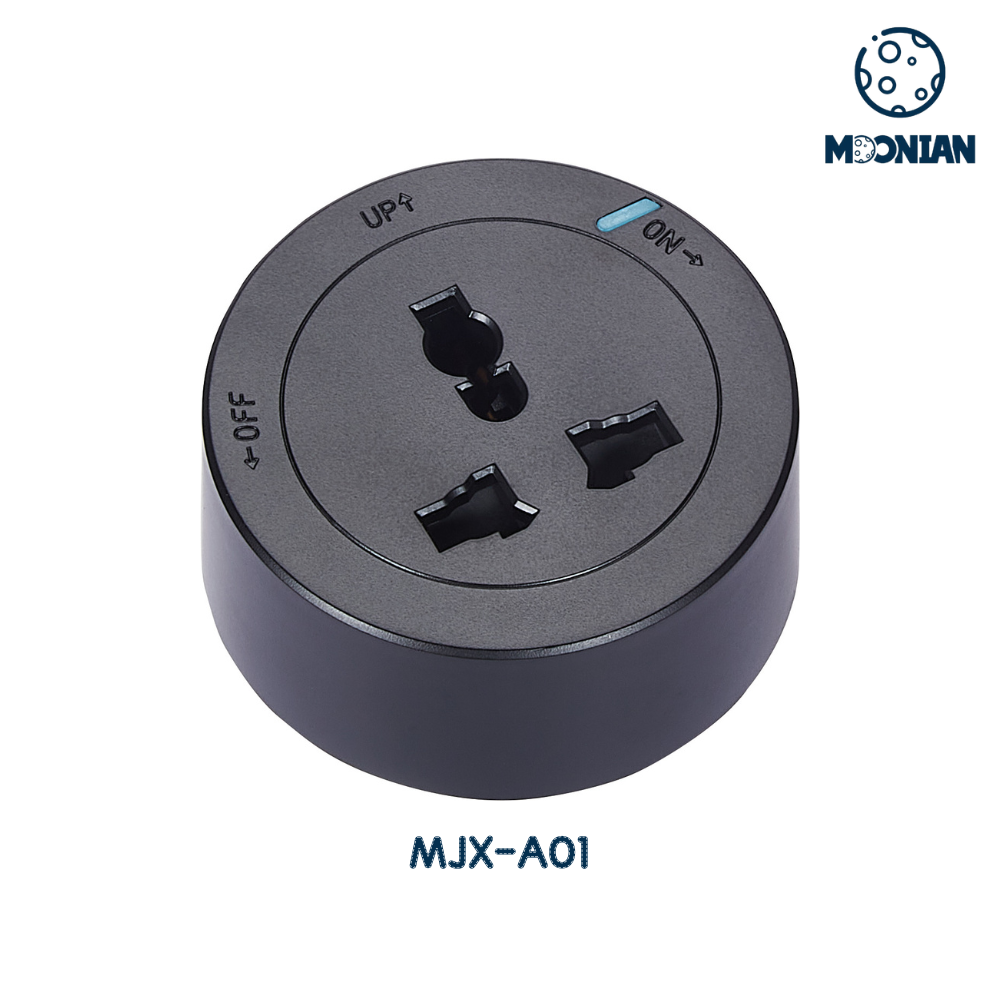

Blue-Dot Series: The minimalist’s favorite. A subtle, soft-blue LED indicator provides power status without overwhelming the space.
Premium Aluminum Series: Crafted from aviation-grade anodized metal. No LED, zero light pollution—built for industrial durability and a professional stealth aesthetic.
More modules options according to your needs.
Power Track Socket - Related Products
Modular Track Power Outlet — Full Specifications
| Specification | Details |
|---|---|
| Rail Length | 40 / 50 / 60 / 75 / 80 / 100 / 120cm (custom length available) |
| Rated Power | 4000W – 8000W (model dependent) |
| Rated Voltage | 110V – 250V AC |
| Socket Modules | EU / UK / US / AU / Schuko (mix & match) |

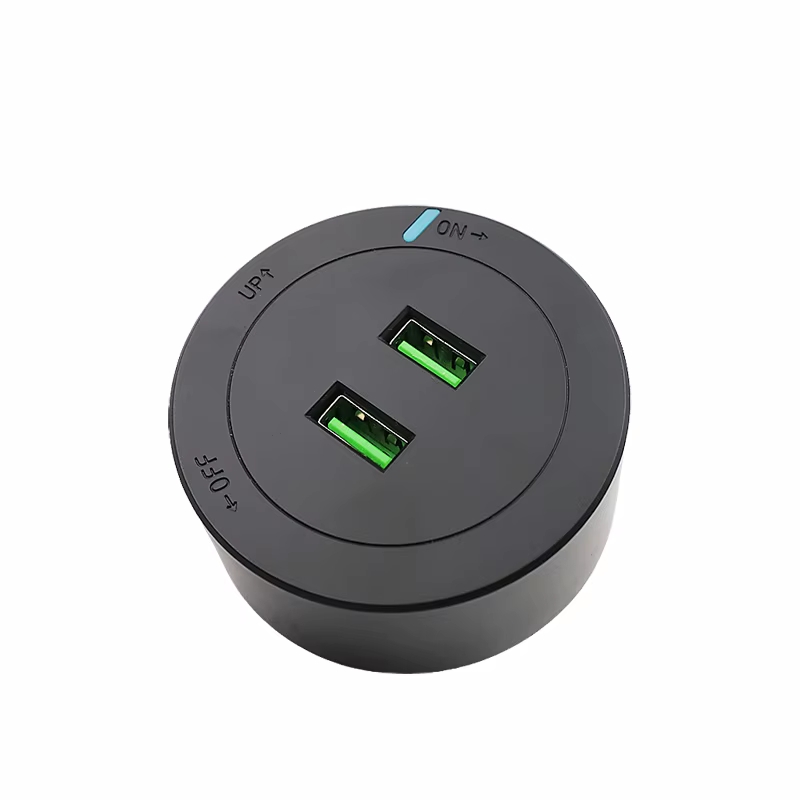

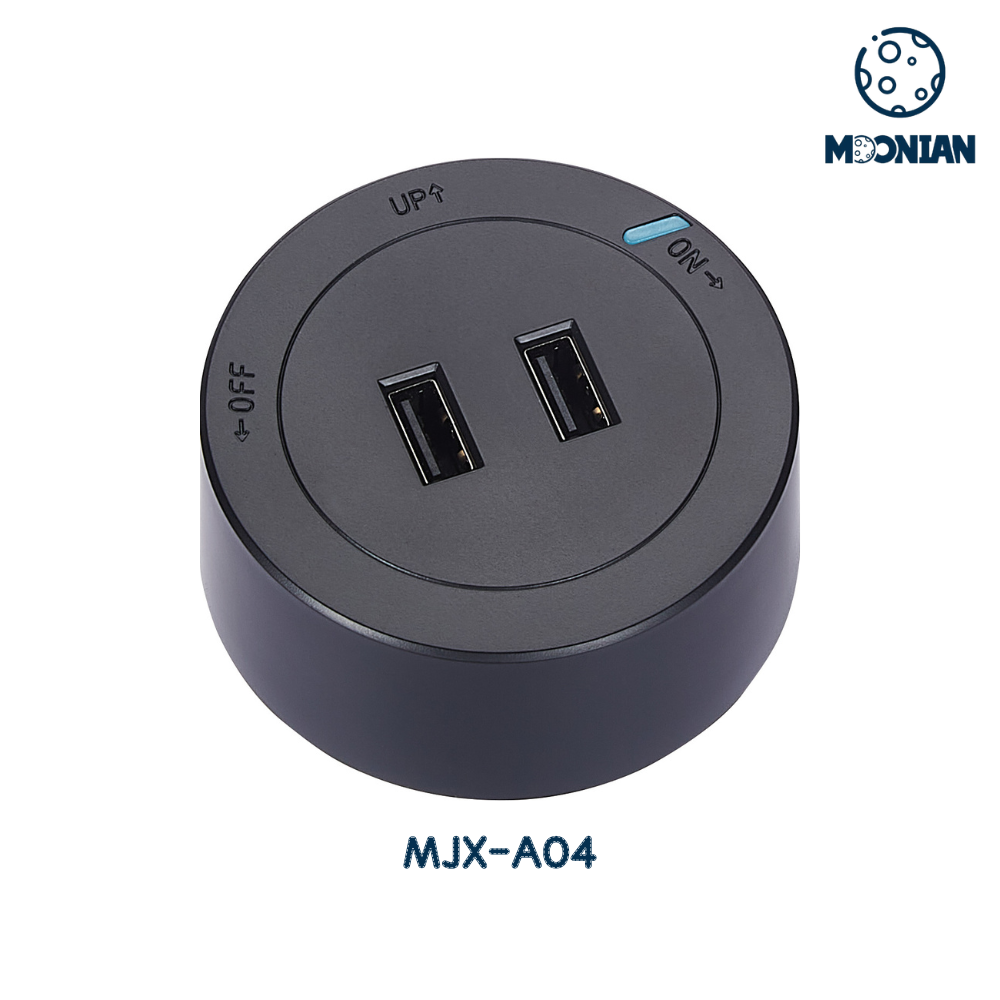

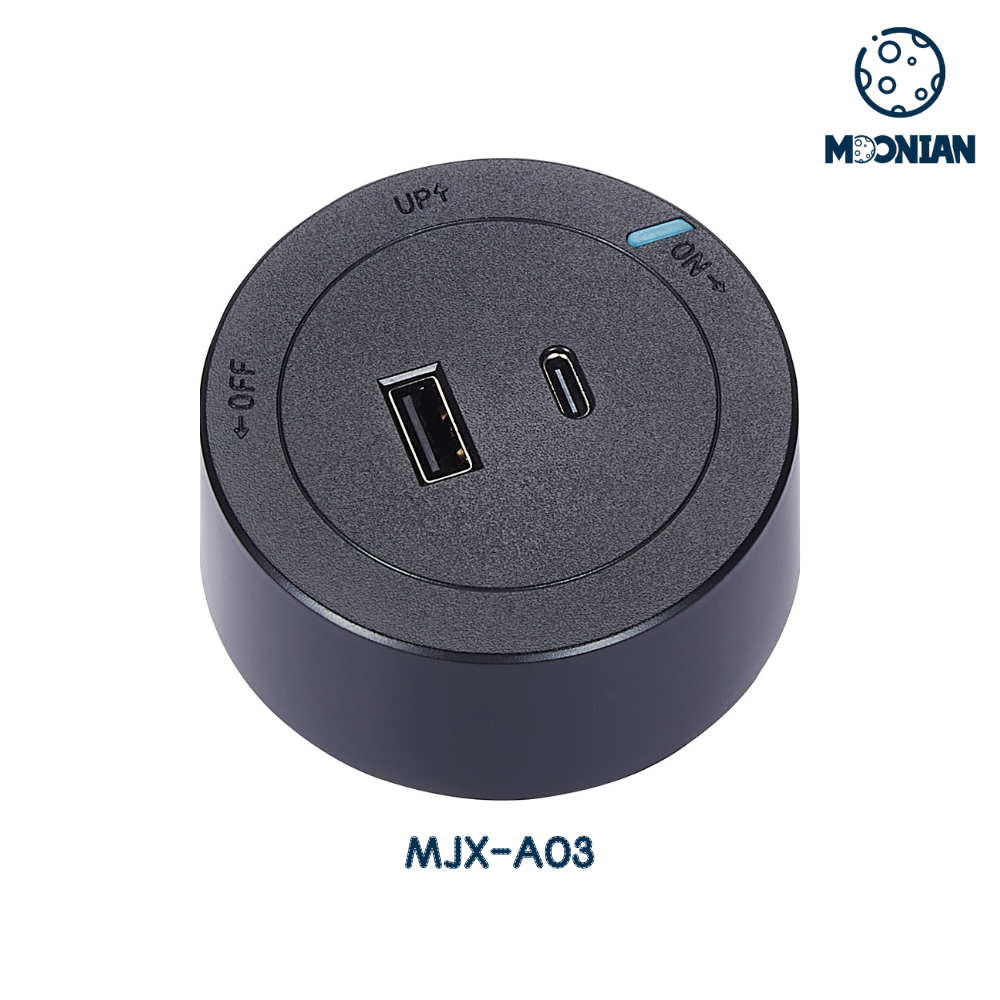

| USB Modules | Type-A / Type-C (optional add-on) |
| Surface Finish | Black / White / Gold / Silver |
| Installation | Surface-mounted track socket / Concealed rail socket system |
| Material | Aluminum alloy rail + ABS housing |
| Certification | CE · RoHS |
| OEM/ODM | Custom logo, custom packaging, custom length available |
All specifications subject to model. Contact us for custom length track socket configurations and volume pricing.
Our Wall Mount Power Track Socket System enhances your space, engineered for seamless integration, robust safety, and modern aesthetics. Featuring premium aluminum alloy construction and intelligent design, this power track socket delivers organized, reliable power management for demanding environments.
Key benefits of our Power Track Socket system:
✅ Sleek Aluminum Tracks: Anodized alloy power track socket available in 30/40/50/60/75/80/100/120CM lengths. Choose concealed S1 (recessed track) or surface-mounted S2 (slot-free installation) for durable, stylish integration.
✅ Configurable Power Modules: Customize your power track socket with movable/replaceable modules to meet evolving device demands.

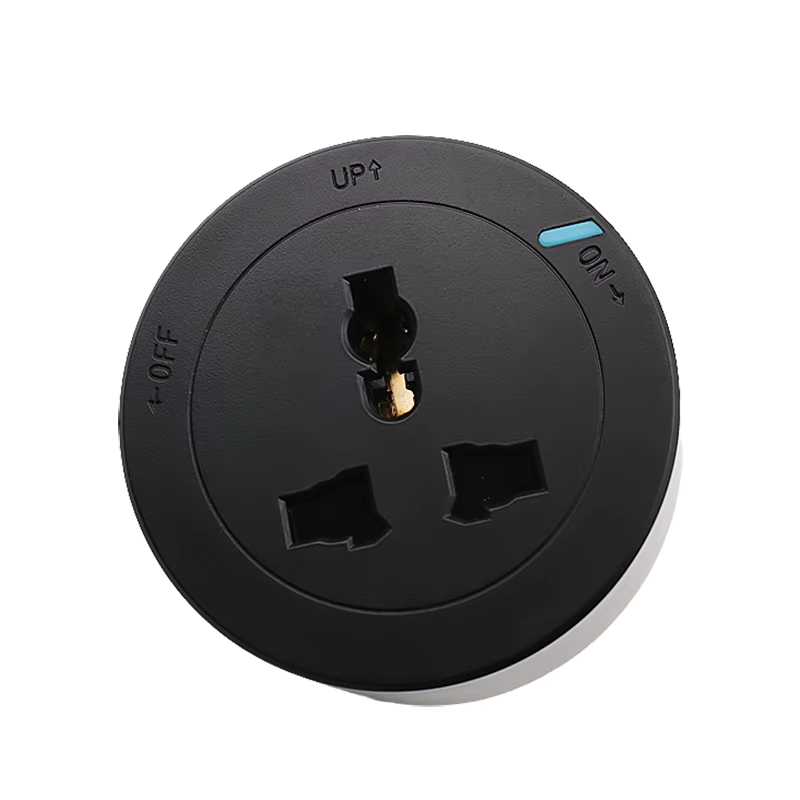

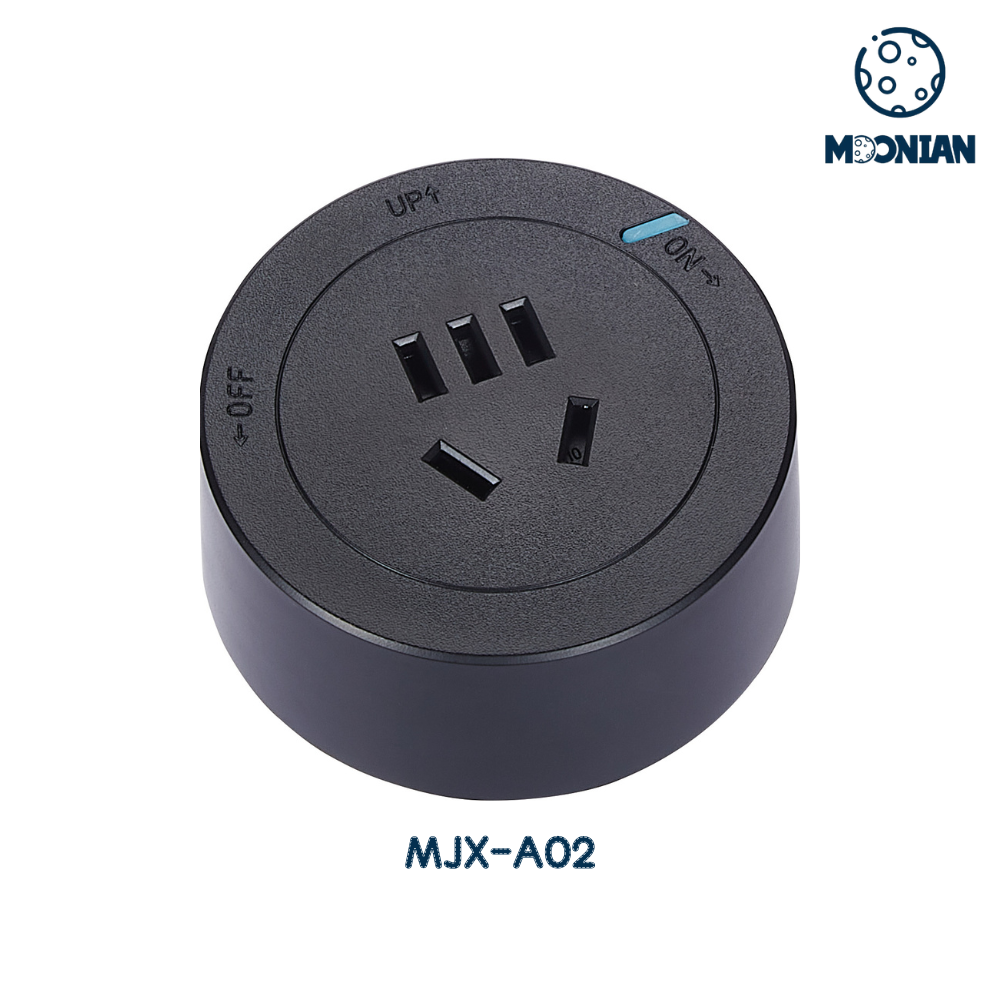

✅ Rotating Control Convenience: Turn power track socket outlets 90° clockwise to power on/off – no unplugging needed. Blue LED indicates active status.
✅ Professional-Grade Safety: 8800W-rated power track socket with phosphor bronze conductors (spark-proof), flame-retardant PC insulation, and shock-proof design (IP20 splash resistance).
Moonian focuses on exceptional detail finishing and rigorous quality control to deliver this high-quality power track socket solution, ensuring your workspace remains organized, safe, and visually refined. Simplify your power needs and protect your devices with our reliable integrated socket system.
Surface-mounted track socket / Concealed rail socket system
S1 a concealed installation step

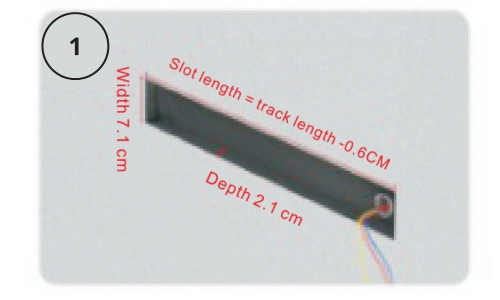

1. Slotting (please refer to the slotting instructions in this manual for details)

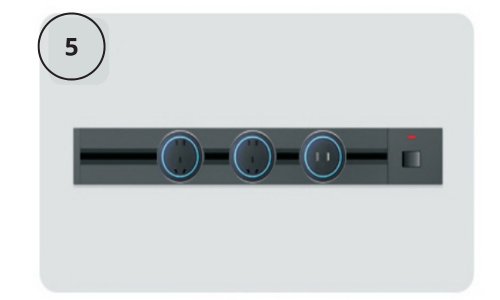

5. The installation is complete

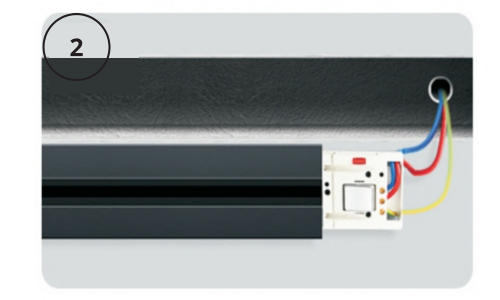

2. Wiring Open the terminal and connect the wires

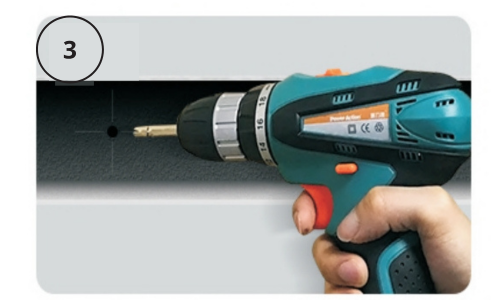

3. Mark the punching position with a pen and punch the hole on the wall with a punch drill

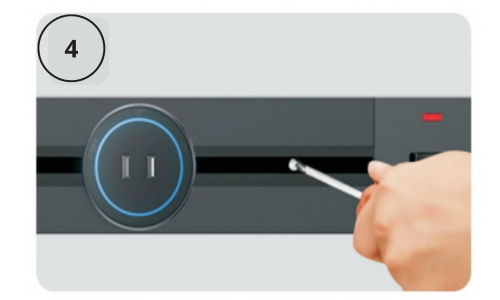

4. An expansion screw is put into the hole to fix the track by the screw
S2 surface installation step

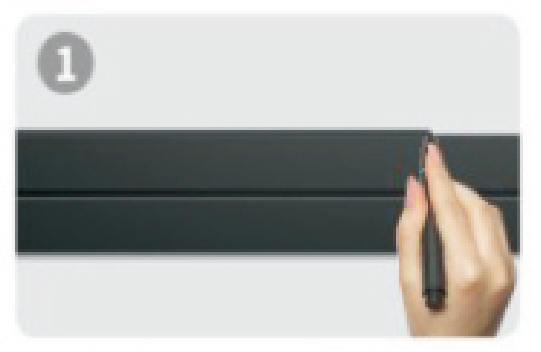

1. Identify the position of the assembly line and draw parallel lines according to the position (the track is not divided into left, right, up and down)

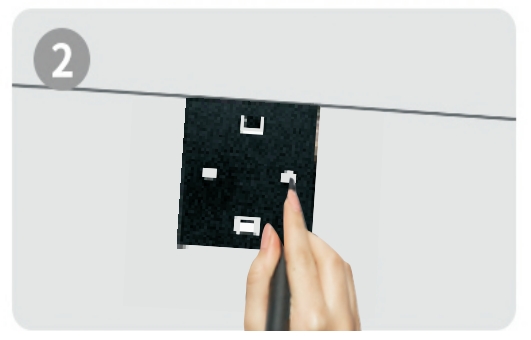

2. According to the drawn line, mark the fixing screw by aligning the upper edge.

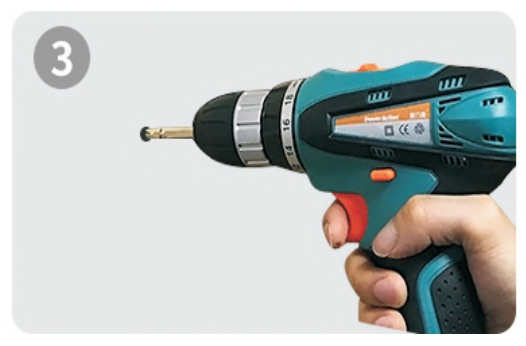

3. Punch holes on the wall with a punch drill at the marked holes

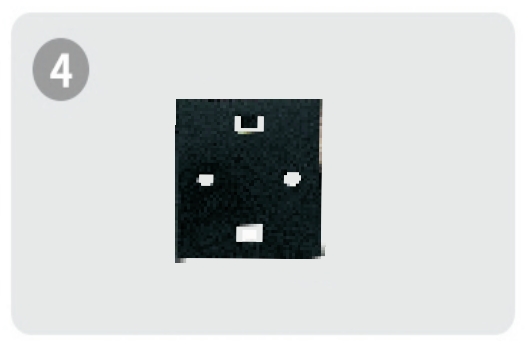

4. An expansion screw is put in the hole to fix the back plate with the screw

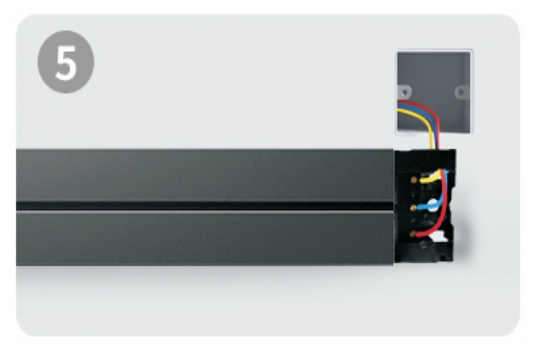

5. Wiring. Open the terminal and connect the wires

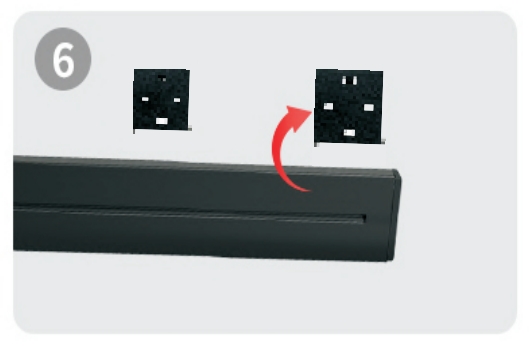

6. Clip the track into the back panel.Installation is complete

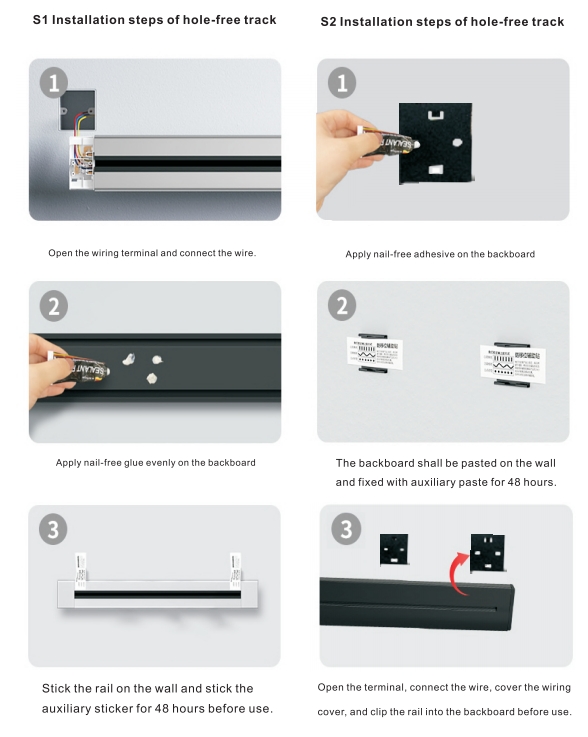

S1/S2 no punch trackinstallation steps
Custom Length Track Socket — OEM & ODM Manufacturing
As a dedicated power track socket manufacturer in China, Moonian supports full OEM and ODM production for furniture brands, electrical wholesalers, and commercial contractors worldwide.
What we offer:
· Custom rail lengths (beyond standard 40–120cm range)
· Custom socket module combinations (EU, UK, US, AU, USB)
· Custom logo on product and packaging
· Custom color and surface finish
· Private label & white label available
Sample orders are accepted. Sample cost is quoted on request based on model and specification. Bulk lead time: 30–45 days after sample approval.
Contact us with your project specifications for a tailored quotation.
Frequently Asked Questions
Question1: What rail lengths are available for your power track sockets?
Answer: Standard lengths are 40, 50, 60, 75, 80, 100, and 120cm. Custom lengths beyond this range are available for qualifying bulk orders — contact us with your project requirements.
Question2: Can I mix different socket modules on the same track?
Answer: Yes. Our modular system supports any combination of EU, UK, US, AU, and Schuko socket types along a single rail, along with optional USB Type-A and Type-C charging modules. Configuration is fully customizable per order.
Question3: Are your power track sockets CE and RoHS certified?
Answer: Yes. All our power track socket products carry CE and RoHS certification, making them suitable for distribution in European and global markets.
Question4: Do you offer OEM and private label services?
Answer: Yes. We provide full OEM and ODM services including custom logo on product, custom packaging design, custom rail length, and custom module configuration. Please contact us with your specifications for a quotation.
Question5: What is the minimum order quantity?
Answer: MOQ varies by model and configuration. Please contact us directly with your requirements and we will confirm the applicable MOQ and pricing.
Question6: What is the difference between surface-mounted and concealed track sockets?
Answer: Surface-mounted track sockets are installed on top of the wall or furniture surface — suitable for retrofitting without structural changes. Concealed track sockets are recessed into pre-cut grooves during construction or renovation, delivering a flush, invisible finish ideal for high-end furniture and commercial interiors.

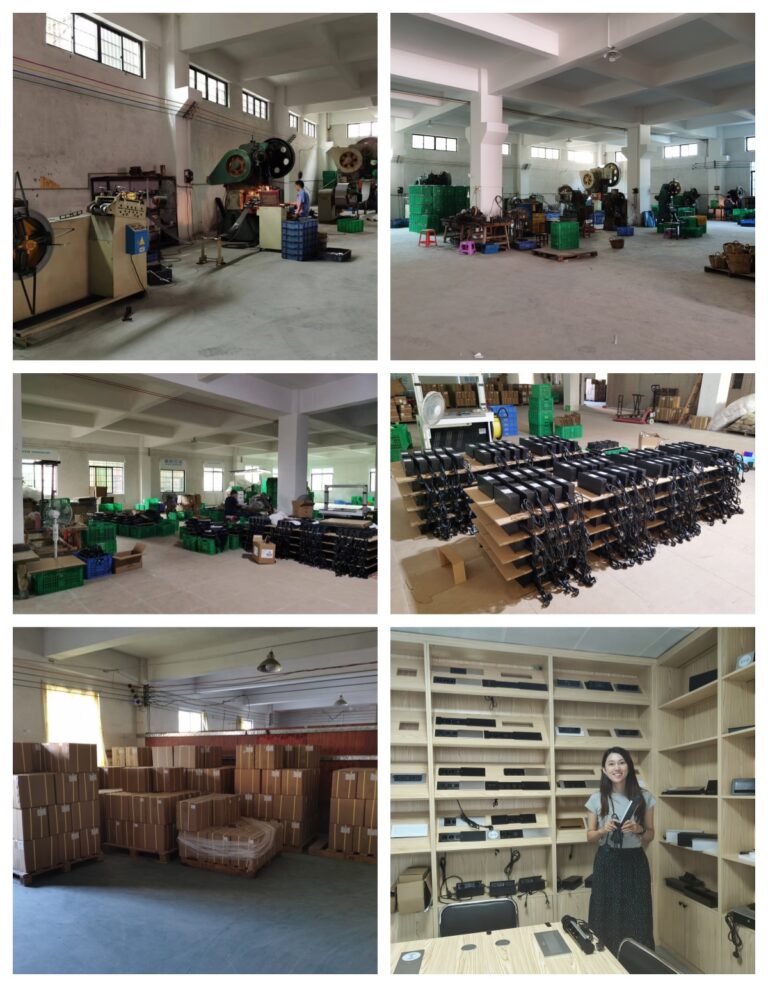

Factory Tour | Moonian-Power Track Socket Manufacturer & Supplier
Our factory, located in Jinli Town, Gaoyao District, Zhaoqing City, Guangdong Province, covers an area of 3,000 square meters and specializes in the professional production of desktop sockets and hardware accessories. Equipped with an in-house R&D department, we cater to the diverse needs of our clients
OEM & ODM Services: Custom logo, custom packaging, custom rail length, and module configuration. Contact us with your project specifications for a tailored quotation. Sample orders accepted— sample cost quoted on request.

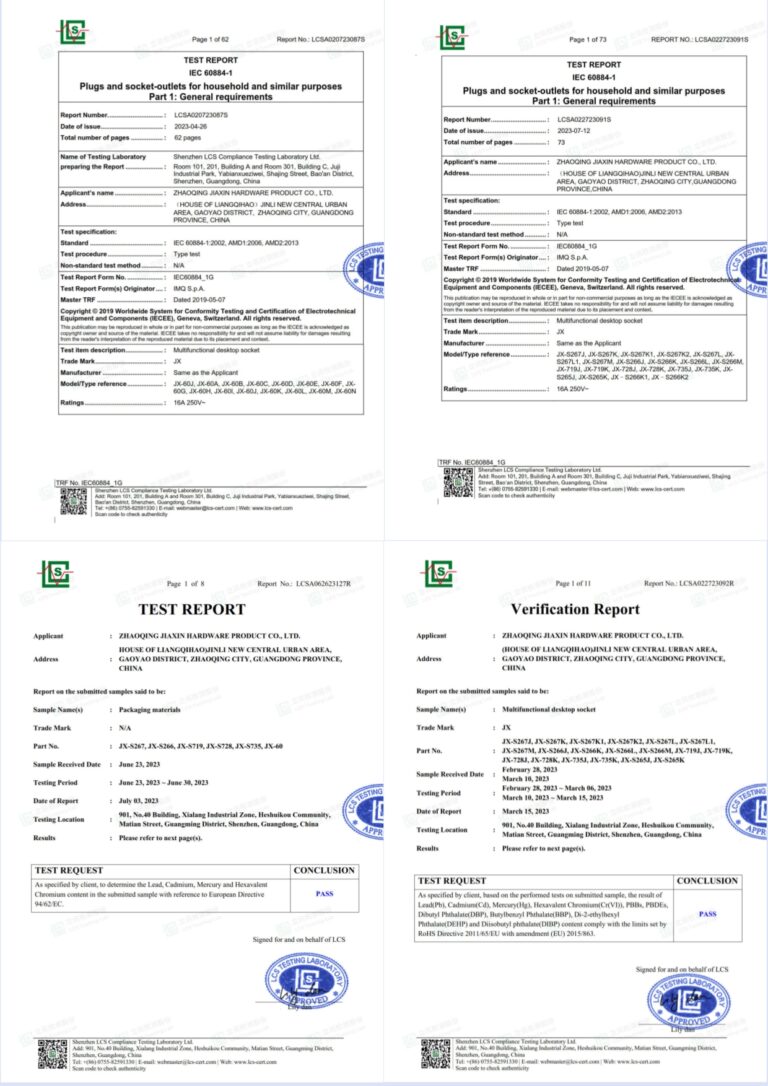

Product Quality | CE and RoHS Certifications
All desktop socket series have obtained CE and RoHS certifications. We are committed to delivering top-tier services and high-quality products at competitive prices, with the ultimate goal of achieving customer satisfaction.
